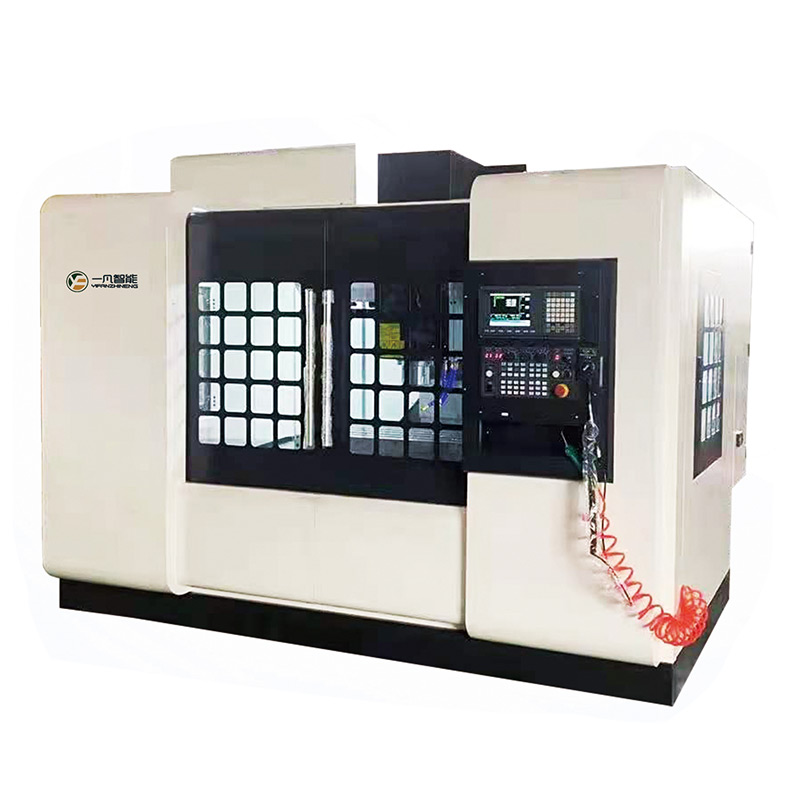

| YF-VMC850 | YF-VMC855 | YF-VMC1160 | YF-VMC1270 | YF-VMC1380 | YF-VMC1580 | |
| Important elements | ||||||
| X/Y/Z-axis travel Unit：mm | 800/500/500 | 800/550/550 | 1100/600/700 | 1200/700/600 | 1300/800/700 | 1500/800/700 |
| Distance from spindle end face to worktable Unit：mm | 110-610 | 120-670 | 94-795 | 87-687 | 100-800 | 130-830 |
| Distance from spindle center to column guide rail Unit：mm | 560 | 590 | 654 | 785 | 850 | 810 |
| feed | ||||||
| Rapid feed（X/Y/Z） Unit：m/min | 48/48/48 | 48/48/48 | 36/36/36 | 16/16/12 | 16/16/12 | 20/20/15 |
| Cutting feed Unit：mm/min | 1-8000 | 1-8000 | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
| Feed motor power（X/Y/Z） Unit：kw | 2.0/2.0/2.0 | 2.0/2.0/4.0 | 3.0/3.0/3.0 | 4.0/4.0/4.0 | 4.0/4.0/4.0 | 4.0/4.0/4.0 |
| workbench | ||||||
| Table size（X/Y/Z） Unit：mm | 1000*500 | 1000*550 | 1200*600 | 1300*700 | 1400*800 | 1700*800 |
| T-groove (width * quantity * spacing) Unit：mm | 18*5*90 | 18*5*90 | 18*5*110 | 18*5*122 | 18*5*135 | 18*5*140 |
| Maximum load of workbench Unit：kg | 450 | 500 | 800 | 1000 | 1000 | 1500 |
| principal axis | ||||||
| Spindle drive - | Belt type / direct connection type | Belt type / direct connection type | Belt type / direct connection type | Belt type / direct connection type | Belt type / direct connection type | Belt type / direct connection type |
| Spindle click (continuous / 30 minutes) Unit：kw | 1.5/11 | 1.5/11 | 1.5/11 | 11/15 | 15/18.5 | 15/18.5 |
| Spindle speed Unit：rpm | 8000/10000 | 8000/10000 | 8000/10000 | 8000/10000 | 8000 | 8000 |
| Nasal end of spindle | BBT/BT-40 | BBT/BT-40 | BBT/BT-40 | BT-50 | BT-50 | BT-50 |
| accuracy | ||||||
| positioning accuracy（VDI 3441） Unit：mm | 0.005（Full stroke） | 0.005（Full stroke） | 0.006/1000 | 0.006/1000 | 0.006/1000 | 0.006/1000 |
| Repetition accuracy（VDI 3441） Unit：mm | 0.005（Full stroke） | 0.005（Full stroke） | 0.006/1000 | 0.006/1000 | 0.006/1000 | 0.006/1000 |
| ATC | ||||||
| Magazine type - | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type |
| Tool change mode | Knife arm type | Knife arm type | Knife arm type | Knife arm type | Knife arm type | Knife arm type |
| Magazine capacity - | 24 | 24 | 24 | 24 | 24 | 24 |
| Maximum tool diameter (adjacent / non adjacent) Unit：mm | φ80/150 | φ80/150 | φ150 | φ80/150 | φ80/150 | φ80/150 |
| Maximum tool length Unit：mm | 300 | 300 | 300 | 300 | 300 | 300 |
| Maximum tool weight Unit：kg | 7 | 7 | 7 | 7/15 | 7/15 | 7/15 |
| Tool change time Unit：sec | 1.8 | 1.8 | 1.8 | 1.8/2.6 | 1.8/2.6 | 1.8/2.6 |
| system | ||||||
| Standard configuration | FANUC | FANUC | FANUC | FANUC | FANUC | FANUC |
| Optional | Siemens, Mitsubishi, Shindai | Siemens, Mitsubishi, Shindai | Siemens, Mitsubishi, Shindai | Siemens, Mitsubishi, Shindai | Siemens, Mitsubishi, Shindai | Siemens, Mitsubishi, Shindai |
| other | ||||||
| Power demand Unit：KVA | 30 | 30 | 30 | 35/40 | 40 | 40 |
| Air pressure demand Unit：kg/cm2 | 6 | 6 | 6 | 6 | 6 | 6 |
| Cutting fluid capacity Unit：L | 250 | 250 | 300 | 300 | 300 | 300 |
| Net mechanical weight Unit：kg | 5300 | 5800 | 7200 | 7800 | 8000 | 10000 |
| Machine size (L / w / h) Unit：mm | 2,900/2,800,2,650 | 3,100/2,900,2,800 | 3,500/3,300,2,700 | 3,600/2,500,2,700 | 3,800/2,600,3,000 | 4,000/3,300,3,600 |
